3 models in AR-R5700 series Networking Appliance

Single board computer, Console server, Panel PC

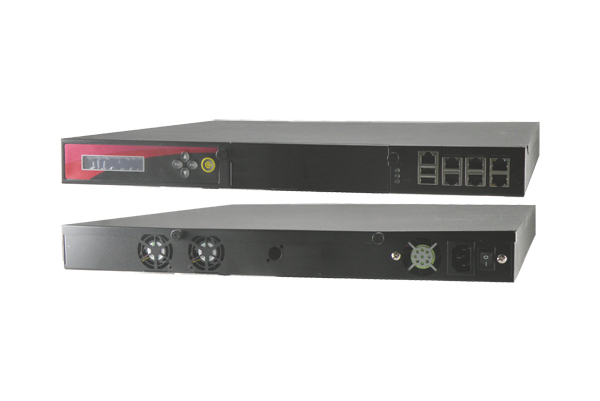

AR-R5700 Series of Networking Security Appliances based upon the Intel Q35 Chipset. It is a high performance system capable of utilizing the Core2Quad, Core2Duo, and Celeron Intel embedded processors.

There are 3 models in AR-R5700 series.
AR-R5700: Intel Q35 +ICH9R with 6 x RJ45 Gigabit Ethernet
AR-R5700L8F2: Intel Q35 +ICH9R with 8 x RJ45 Gigabit Ethernet and 2 SPF Gigabit Ethernet
AR-R5700L10: Intel Q35 +ICH9R with 10 x RJ45 Gigabit Ethernet

AR-R5700 series features:
● Intel Q35+ICH9R chipset supports CPU from Core2Quad/Core2Duo/Celeron, front side bus up to 1333MHz.
● 4 x Memory slots in total, supports maximum up to 8GB using 64bit OS.
● 6 x RJ-45 Gigabit Ethernet standard, maximum up to 10 RJ-45 Gigabit Ethernet.
● Flexible Extension Gigabit Ethernet module (2 x RJ-45 + 2 x SPF Gigabit Ethernet) or 4 x RJ-45 Gigabit Ethernet
● Console re-direction by serial port (RJ-45 connector with a DB9 cable)
● By pass function controlled by H/W and Software.
● 16 x 2 characters LCD module
